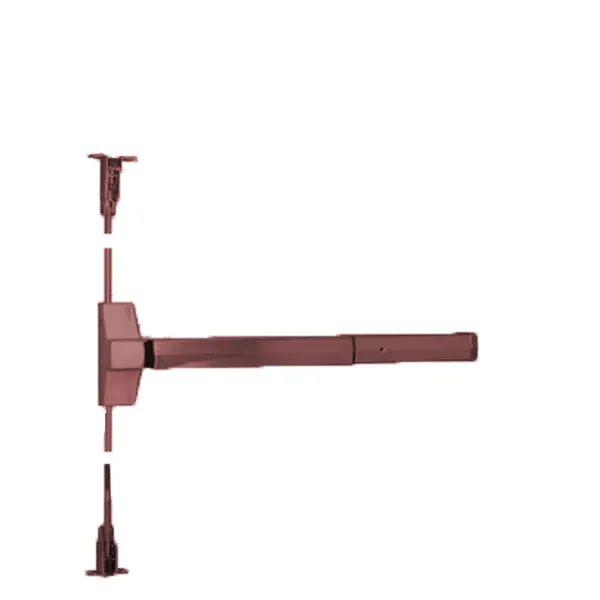

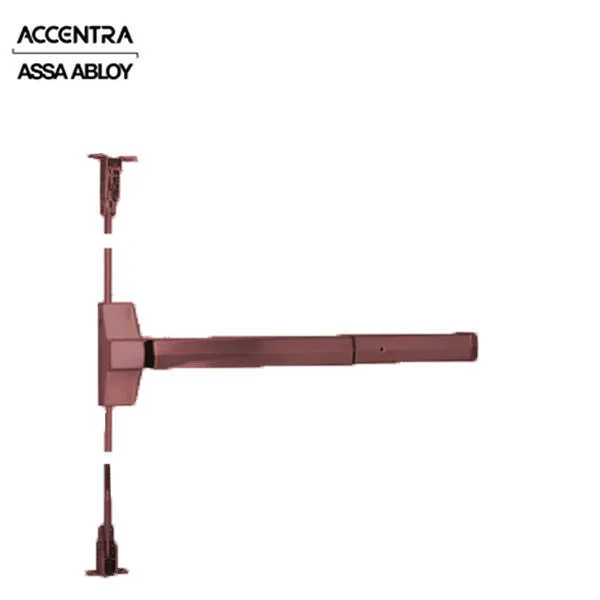

Yale® 7000 Series Exit Devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1 certification and a full range of mechanical and electromechanical functions and accessories, the 7000 Series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The 7120(F) is a concealed vertical rod exit device to be used on metal doors only up to 8' (fire) and ICY (panic) where two-point latching is desired.
Features
- Designed for wide stile and flush doors
- Handed. Specify hand (field reversible)
- Bottom deadbolt for secure latching
- Fully adjustable roller strike
- Pairs of doors• Double egress
- Metal door only
Specifications
| Trim | Less Trim |
| Door Opening Width | 36 for 30" - 36" (76cm - 91cm) doors |
| Door Opening Height | Standard door height adjustable to 8' (244cm), with the device centerline at 39-15/16" (101cm) from floor. |
| Door Thickness | 1-3/4" (44mm) standard, 2" and 2-1/4" (51mm and 57mm) |
| Minimum Stile Width | 4-1/2" (114mm) |
| Projection | 3-1/4" (83mm) active, 2-3/4" (70mm) dogged |
| Latchbolt |
Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching |
| Vertical Rods | 1/2" O.D. tubular rods |
| Strike | Top: Roller type 791 (panic and fire). Bottom: Flush mounted 790 (panic and fire). 794 floor strike |
| Fasteners | Machine screws standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware. |
| Dogging feature | Hex key dogging supplied standard |
| Certifications |
ANSI/BHMA Grade 1 certified |
| Manufacturer's Warranty | 5 Year Mechanical |
