Product Details

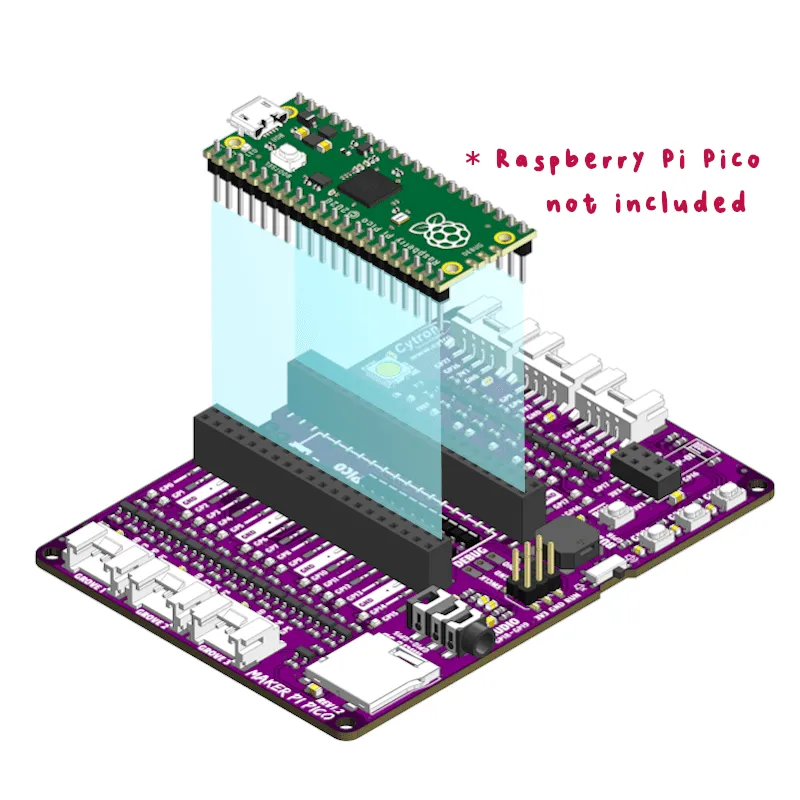

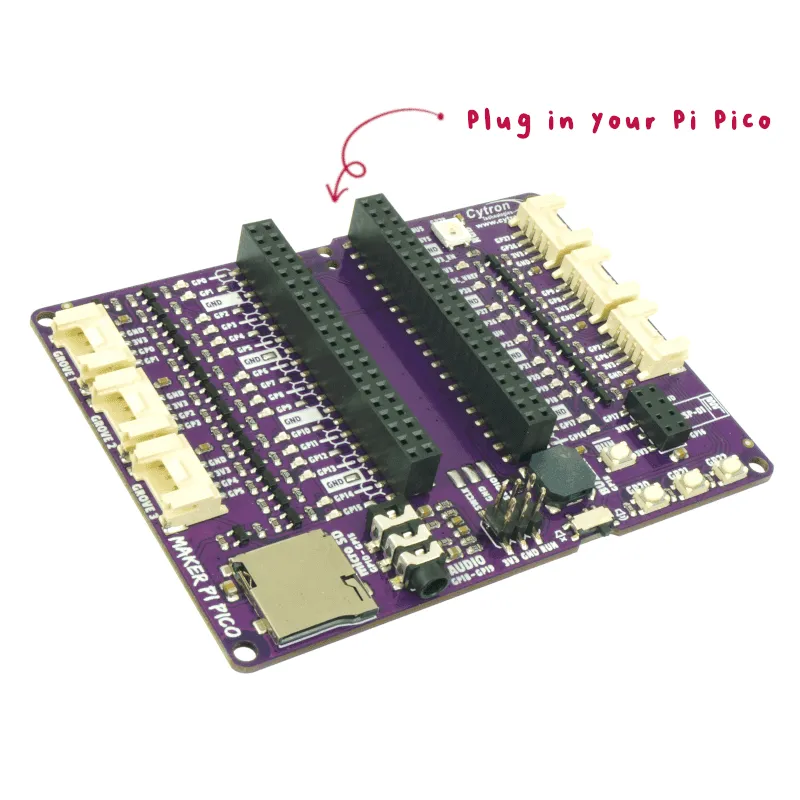

Maker Pi Pico Base incorporates the much wished-for Reset button for your Raspberry Pi Pico, and gives you access to all GPIO pins on two clearly-labelled 20-pin female headers. Each GPIO is coupled with an LED indicator for convenient code testing and troubleshooting. The bottom layer of this board even comes with a comprehensive pinout diagram showing the function of each pin!

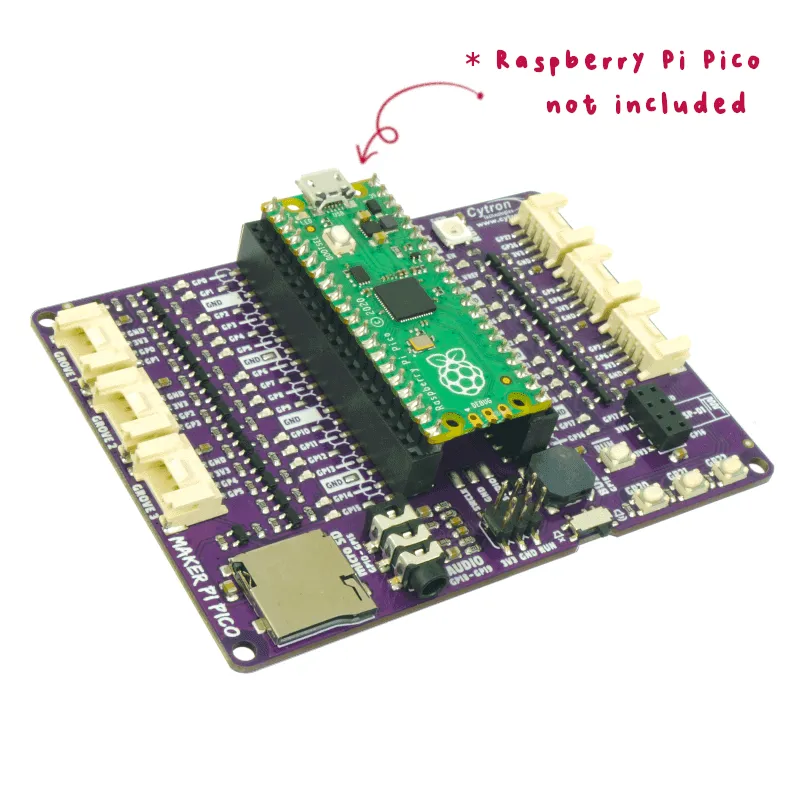

Please note! The Raspberry Pico is not included. You will need to solder headers on to your Pico to plug it into this board!





It is a compact yet feature-packed board designed to sit at the heart of your STEM & robotics projects. Just use the jumper wires and/or Grove cables to connect any sensor and output modules to expand its capability. No soldering required!













Maker Pi Pico Base can be programmed with , MicroPython & C/C . Just connect to any computer (including Raspberry Pi SBC) via USB, then drag and drop the file onto it to upload the program. It's as easy as copying a file into your thumb drive!



What's Raspberry Pi Pico?

Raspberry Pi Pico is the first microcontroller board from , specially designed for physical computing. It can be programmed with MicroPython and C/C to control things in our real world.



Board Layout:



Features:

  • Work out-of-the-box. No soldering!
  • Access to all Raspberry Pi Pico's pins on two 20 ways pin headers
  • LED indicators on all GPIO pins
  • 3x programmable push button (GP20-22)
  • 1x RGB LED - NeoPixel (GP28)
  • 1x Piezo buzzer (GP18)
  • 1x 3.5mm stereo audio jack (GP18-19)
  • 1x Micro SD card slot (GP10-15)
  • 1x ESP-01 socket (GP16-17)
  • 6x Grove port



Dimension:



Packing List:

  • 1 x Maker Pi Pico



Resources:




Maker Pi Pico Base (without Pico): Simplifying Pi Pico for Beginners
  • DefaultTitle

$ 0.00

$ 11.99
