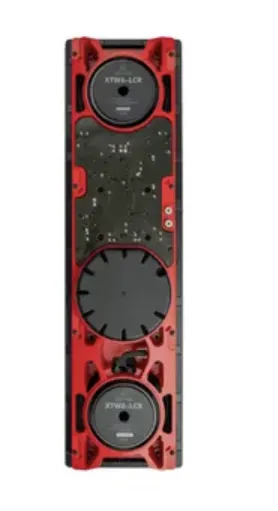

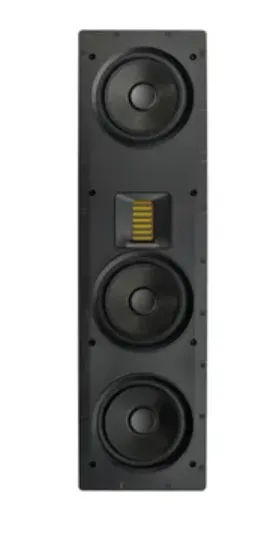

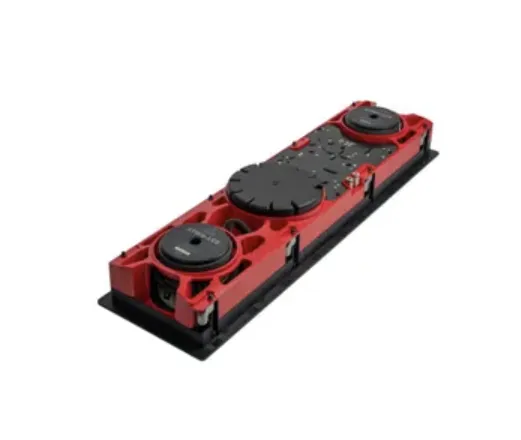

The largest "LCR"model in the Motion XT CI series includes a unique feature that brings its performance level up even higher. In addition to the FMT XT tweeter, and dual 6.5"woven Kevlar Nomex-backed bass drivers, the XTW6-LCR has a dedicated 6.5"midrange driver that brings its acoustic performance to the same level as a traditional floor standing speaker. With a rotating tweeter housing, the XTW6-LCR can be used horizontally when needed, and is the perfect choice for systems desiring a higher level of performance without the large footprint of a tower speaker.
|
Frequency Response |
44 - 25,000 Hz ±3dB |
|
Tweeter Dispersion (horizontal x vertical) |
80 x 30 degrees |
|
Recommended Amplifier Power |
Range 50-300 Watts |
|
Sensitivity |
93dB @2.83V/ 1 meter |
|
Impedance |
4 ohms. Compatible with 8 ohms |
|
Crossover Frequency |
260, 2470 Hz |
|
High Frequency Driver |
FMT Transducer 1.27"x 2.4"(3.22cm x 6.09cm) Opening 4.5"x 2.75"(11.43cm x 6.98cm) Diaphragm |
|
Crossover Type |
3 way |
|
Driver Configuration |
1 x 1.27"x 2.75"FMT, 1 x 6.5"midrange, 2 x 6.5"Woofers |
|
Woofer Specifications |
Two 6.5"(16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap. |
|
Cabinet Material |

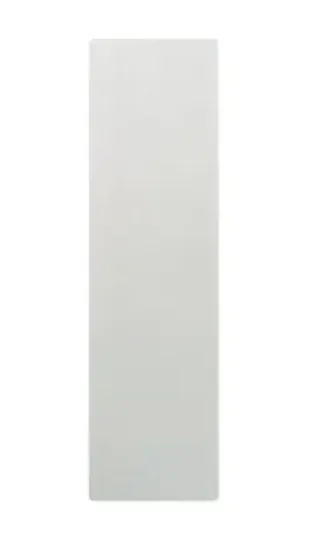

Black w/ White Paintable Grill |
|
Connector |
Push style |
|
Components |
Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection. |
|
Max Power Handling |
150 Watts |
|
Midrange Driver |
One 6.5"(16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap |
|
Weight |
3.5 lbs. each (1.6 kg) |
|
Dimensions (overall size) |
28"x 7.69"x 3.67"(71.12 x 19.5 x 9.31cm) |
|
Required Wall Opening (includes tolerance) |
6.64"x 27"(16.9 x 68.5cm) |
|
Projection From Wall Surface |
0.13"(0.32cm) |
|
Depth Behind Wall Surface |
3.54"(8.99cm)in |
