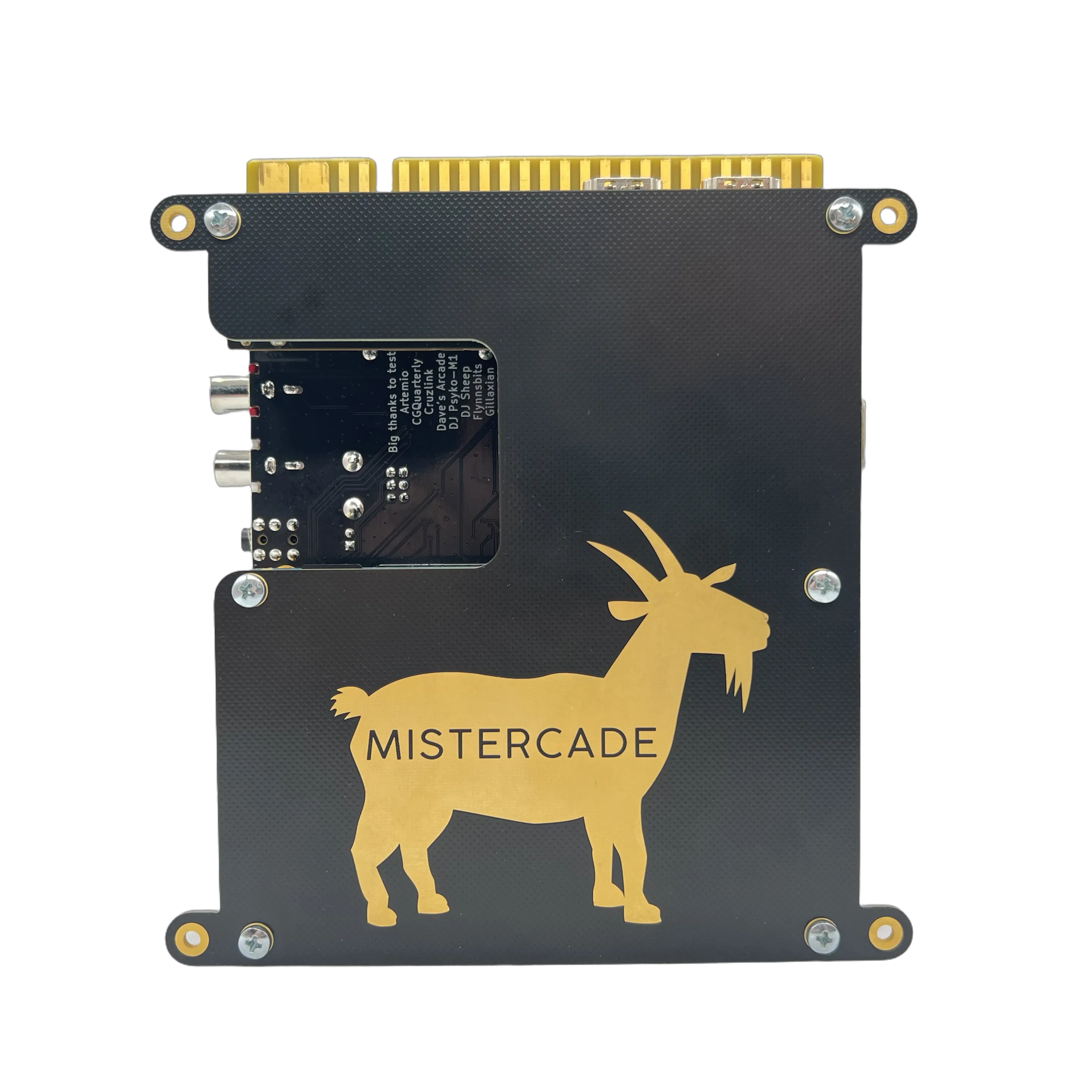

6/3/2024: Added improved and updated bottom plate with opening for easy micro SD card access. It’s compatible with all versions of MiSTercade (V1, V1.1, V1.2, V1.3)!

Please watch the Remote Case Install tutorial prior to ordering. Details on the button clearance at the end :)

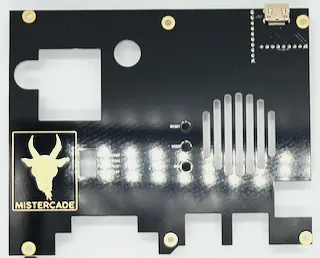

MiSTercade Top Plate

• Mini HDMI remote connector
• Requires M3x12mm male to female brass spacers

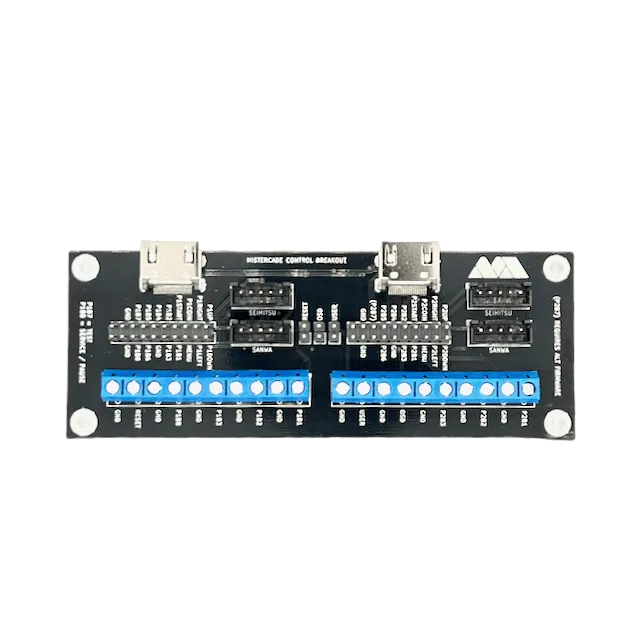

 MiSTercade Breakout

• Made to break out all controls from the XL board
• Use 2x 19 pin HDMI cables to build your own arcade control panel
• Compatible with Brook headers (coming soon)
• Screw terminal breakouts for:
• P1B1, P1B2, P1B3
• P2B1, P2B2, P2B3
• RESET, USER, OSD
• Sanwa and Seimitsu joystick headers
• Great for adding cabinet system buttons, or foot pedals

Remote V1:

• Extend your MiSTercade with this control panel remote
• Requires MiSTercade top plate
• Features:
• Volume control (move audio jumper from internal to external on JAMMA)
• 2 x Coin buttons
• Pause, Core Reset, Menu, and System Reset buttons
• SNAC (no PSX)
• 3.5mm headphone with auto-mute
• 30mm aluminum knob
• 1.8m mini HDMI to HDMI cable

Remote V2:

• Extend your MiSTercade with this control panel remote
• Requires MiSTercade top plate
• Features:
• Volume control (move audio jumper from internal to external on JAMMA)
• 2 x Coin buttons
• Pause, Core Reset, Menu, and System Reset buttons
• SNAX (Supports 2P PSX, NES, and SNES)
• Composite sync port for GunCon
• 3.5mm headphone with auto-mute
• 30mm aluminum knob
• 1.8m mini HDMI to HDMI cable

Complete MiSTercade Diagrams:
