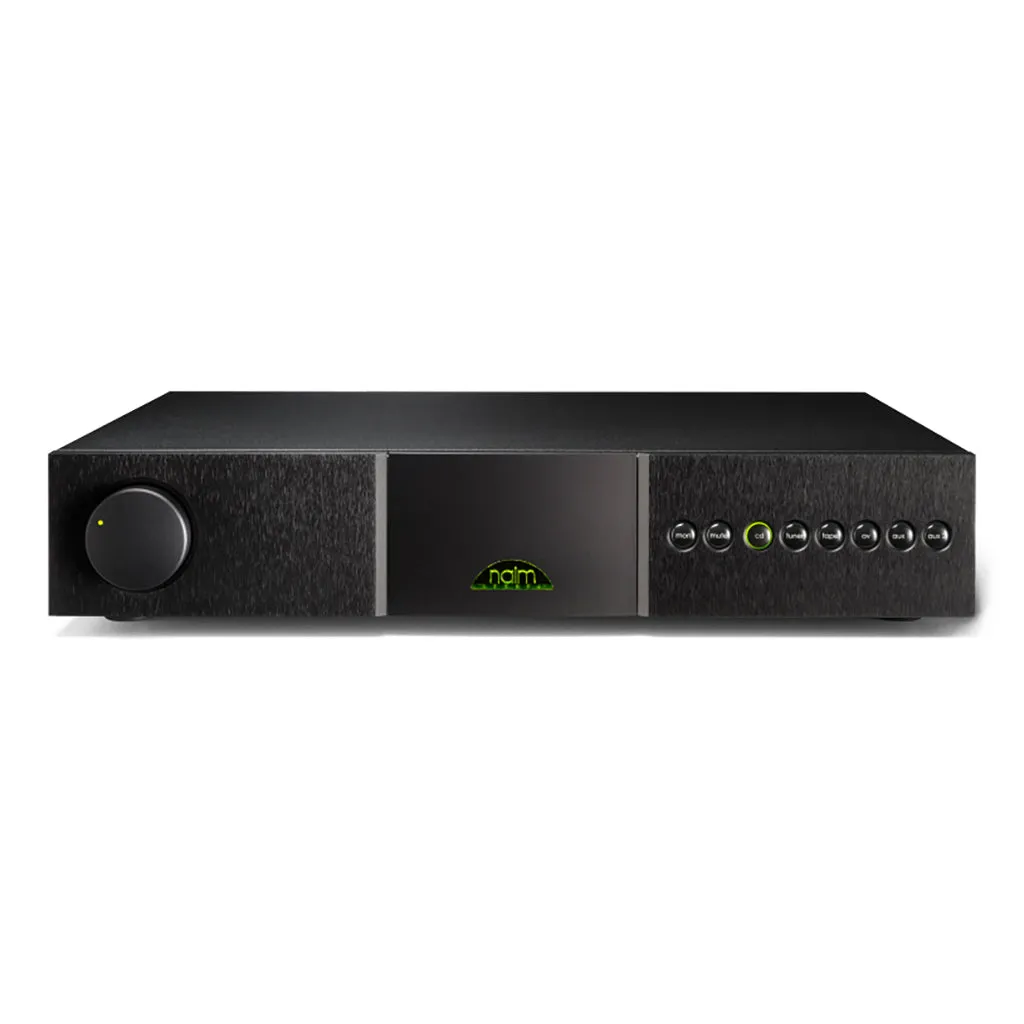

Naim NAC 202 Preamplifier (Power Supply Sold Separately)

Can also be powered from the preamp inputs of NAP 155 XS or NAP 200

The NAC 202 is the next step up from the entry-level NAC 152 XS, adding star-earthed circuit boards for superior transparency and an even lower resonance circuit layout. It provides for a wide range of expansion and upgrade options, including connection to a StageLine phonostage and an AV bypass connection to an external AV amplifier.

Features

  • Support for both DIN and RCA inputs to ease connection into a wider range of systems
  • User-configurable unity-gain AV input
  • Powered input for use with StageLine or Prefix phono stage
  • RC5 input and Smart IR system for remote control integration of Naim Audio products
  • Optional RS232 input/output for use in full home automation systems
  • Can be powered from the preamp inputs of the NAP 155 XS or NAP 200 power amplifier or external power supply (see Upgrade Path)

Specifications

Audio inputs
Other inputs: AV input configurable for unity gain
Input impedance: 47 kΩ
Analog inputs: 4 x DIN, RCA

Input sensitivity: 75 mV

Audio outputs
Line outputs variable (level): 775 mV
Line outputs fixed (level): 75 mV, 600 Ω
Load impedance: 10 kΩ (min.)
Output impedance: <50 Ω
Analog: 2 x variable, 3 x line level
Power outputs: For Naim phono amplifier

RS232: Optional (DE9 female)
Remote input: RCA on rear (RC5)

Weight: 15.4 lb

Dimensions (HWD): 3.4" x 17" x 12.36"

Power supply options: NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap

Supplied with: NARCOM-4 remote control

Upgrades: 1 x HiCap/SuperCap

Naim NAC 202 Preamplifier
  • DefaultTitle

$ 59.93

$ 46.10
